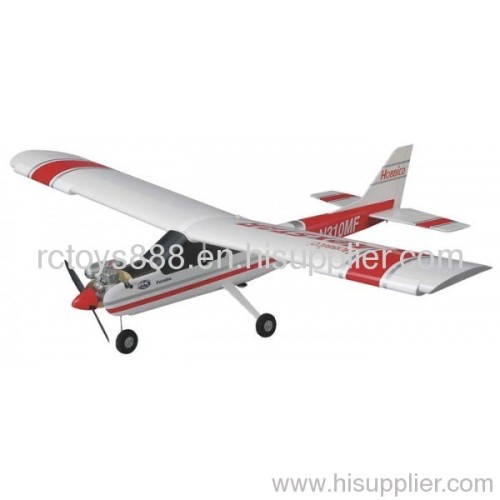

This is the radio controlled, glow powered, Ready-To-Fly, Hobbico NexSTAR Select .46 trainer
airplane. For Beginner Modeler/Fliers. With such features as AFS (Active Flight Stabilization), SpinControl Airfoil Extensions, SpeedBrakes Training Flaps and much more, no other trainer offers so much help for the first-time pilot.
Features :
Hobbico NexSTAR 46 Select 4-Channel RTF 68.75" HCAA17**
Construction: Balsa and plywood
Wings: CenterCore Molded Composite Main Wing Rib maintains perfect alignment and includes a built-in aileron servo mount, wing halves are joined with a steel rod.
Flat bottom high mount configuration
One-piece, all wood precision airfoil with SpinControl Airfoil
Extensions provide lift even in a stall to keep the NexSTAR level and the pilot in control.
PivotFlex Wing Mounting System fastens with one nylon bolt, a rubber retainer and pivoting channel absorb minor jolts of normal use, more severe jolts cause the wing to separate from the fuselage and escape the full force of impact.
Airspeed Restrictor: SpeedBrakes Training Flaps attach to forward section of wing near fuselage and hold airspeed to a minimum to insure smooth landings, removeable as pilot skills increase
Covering: Polyester based heat shrink, color scheme is White and Red with Silver accents. True Red TOPQ0227
Engine: Pre-installed O.S. Max .46FXi (7.5cc) with High-Speed
Needle Valve extender/limiter that limits the movement of the
High-Speed Needle to prevent engine from being run too lean.
Engine is mounted on IsoSmooth Mount to isolate airframe and radio gear from damaging vibration
Radio: Futaba 4YBF 4-channel FM radio with(micro) square trainer port AFS (Active Flight Stabilization) that actively searches for any signs of instability and takes immediate action to correct them.
This system uses on-board electronic sensors that detect instability-just release the sticks and AFS does the rest. Sensitivity is adjustable as pilot gains flight skills.
Landing Gear: Duraluminum SnapGear Quick Landing Gear Mounts (US Patent #6,886,780) lock in place with a snap and provide the strongest landing gear of any trainer, also easily removeable Aileron Control: Single standard size servo, wings are built with dual aileron servo trays for future upgrades as skills increase, can also be equipped with flaps
Tail Mounting: EasyAlign System guides parts into place automatically in perfect alignment without tools
Propeller: 11x5 nylon, black in color with painted tips to aid visibility-available separately, HCAA3744
Building Time: Ready to fly in only 20 minutes
Warranty Period: Hobbico guarantees this kit free from defects in both material and workmanship at the date of purchase. This warranty does not cover any component part damaged by use or modification.
Specifications :
Wingspan: 68.75" (1746mm)
Wing Area: 722 sq in (46sq dm)
Weight: 6.5lb (2930g) Ready To Fly
Wing Loading: 21 oz/sq ft (63g/sq dm)
Length: 56" (1420mm)
Airfoil: High-Wing
Center of Gravity: 3-3/16" (81mm) forward limit 3-9/16" (90mm) aft limit from the wing's leading edge at the fuselage sides
Control Throws-
Elevator: Up & Down ½" (13mm)
Rudder: Right to Left ¾" (19mm)
Ailerons: Up ½" (13mm) Down 3/8" (9mm)
Contents :
Pre-built and covered wings, fuselage and tail assemblies, 2-56 threaded pushrods in lengths of 31", 31", 17", 15" (GPMQ3716) pre-bent main landing gear with three 2¾" (70mm) foam main wheels, steerable nose gear, IsoSmooth aluminum and rubber engine mount, 9.1oz (270cc) fuel tank, 2¼" (57mm) plastic spinner glow plug, 11x5 nylon propeller, RealFlight NexSTAR disc with transmitter interface, O.S. Max .46 FXi engine, Futaba 4YBF 4-ch radio system with Tx battery (FUTM1440) Rx battery (FUTM1295) Charger (FUTM1830),AFS Dual Conversion Receiver,linkages, and and photo-illustrated instructions.
Price : USD287 (10 units)
